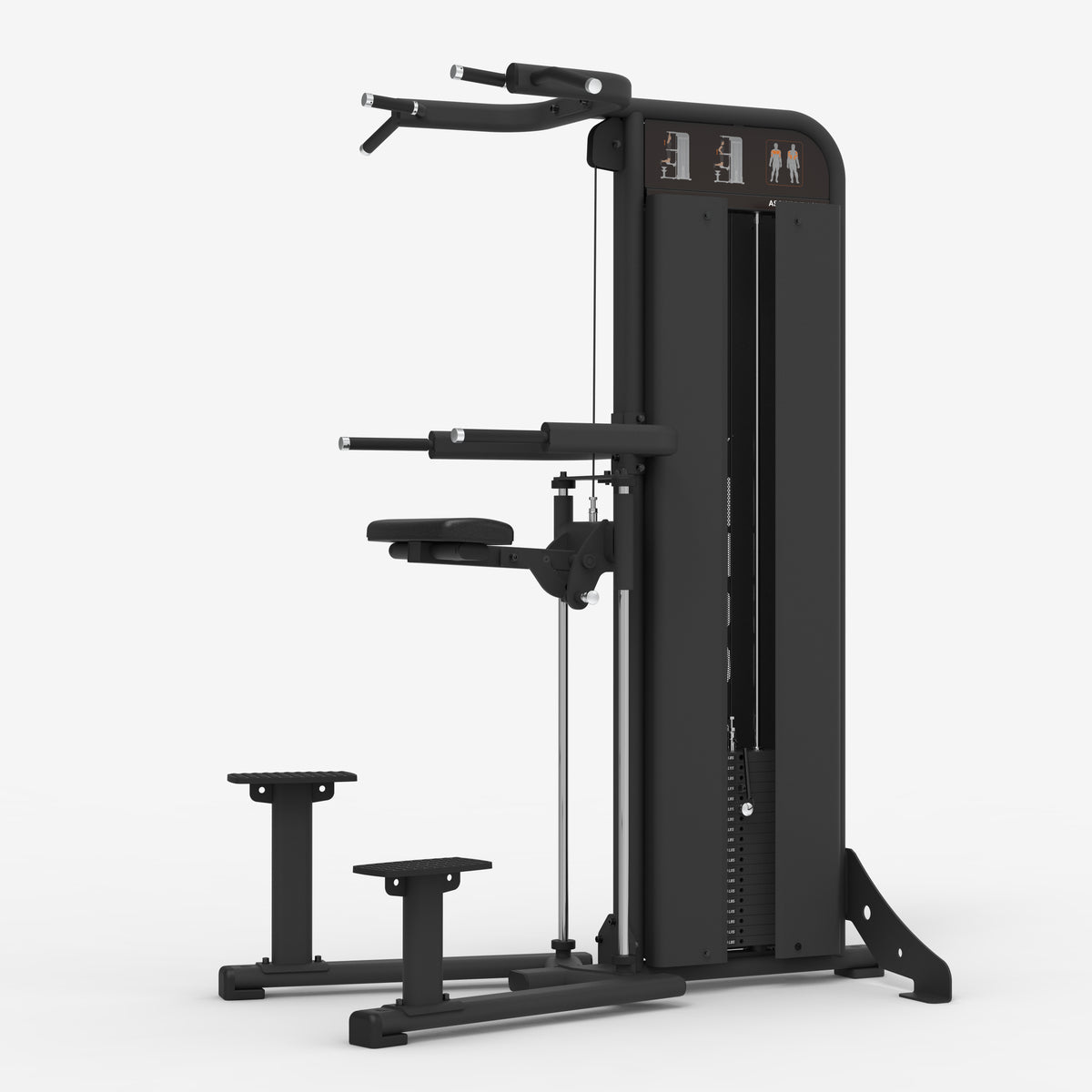

Chin-Up & Dip Assist - AegisX™ Series

Product Info

The Chin-Up & Dip Assist counterweights an athlete’s bodyweight so chin-ups, pull-ups and dips can be trained with real reps long before an unassisted one is possible — and kept in a programme as a volume tool once it is.

The stack works in reverse of a normal machine: more weight selected means more help, not more resistance. Pin in at 44 lb and the athlete is lifting their bodyweight minus 44 lb. Drop the pin as they get stronger and the assistance falls away, which turns a movement most people can only fail at into one they can actually progress.

Plates run in 11 lb (5 kg) and 16.5 lb (7.5 kg) steps with two 5.5 lb (2.5 kg) micro adjusters, so the increments stay small enough to matter near the top of the range, where the difference between assisted and unassisted is a few pounds.

The knee pad folds away for unassisted work, so the same frame serves a beginner on heavy assistance and an athlete doing strict bodyweight dips. Step heights are staggered so shorter and taller users can both get on and off under control.

The machine stands 87.2" (2215 mm) tall and weighs 521 lb (236.5 kg). Check your ceiling height with an athlete’s reach above that figure, and see Shipping & Lead Time below before ordering.

Technical Specs

• Type: Pin-loaded counterweighted chin-up and dip assist
• Assist Stack: 204 lb (92.5 kg)
• Stack Plates: 7 x 11 lb (5 kg) and 7 x 16.5 lb (7.5 kg)
• Micro Adjusters: 2 x 5.5 lb (2.5 kg), included
• Width: 49.4" (1255 mm)
• Length: 59.1" (1500 mm)
• Height: 87.2" (2215 mm)
• Frame: 2" x 4" (50 mm x 100 mm) steel, 2.5 mm wall
• Knee Pad: Folds away for unassisted work
• Steps: Staggered heights for varying user height
• Upholstery: EVA foam
• Feet: Rubber, floor protecting
• Machine Weight: 521 lb (236.5 kg)
• Use Rating: Full commercial
• Part Number: 2220010

Shipping & Lead Time

Ships as freight on a pallet. Ground-level or loading dock access is required — this is not a courier parcel and will not be carried upstairs. Professional assembly is recommended, and the frame needs its full 87.2" (2215 mm) of height plus clearance above for the user.
