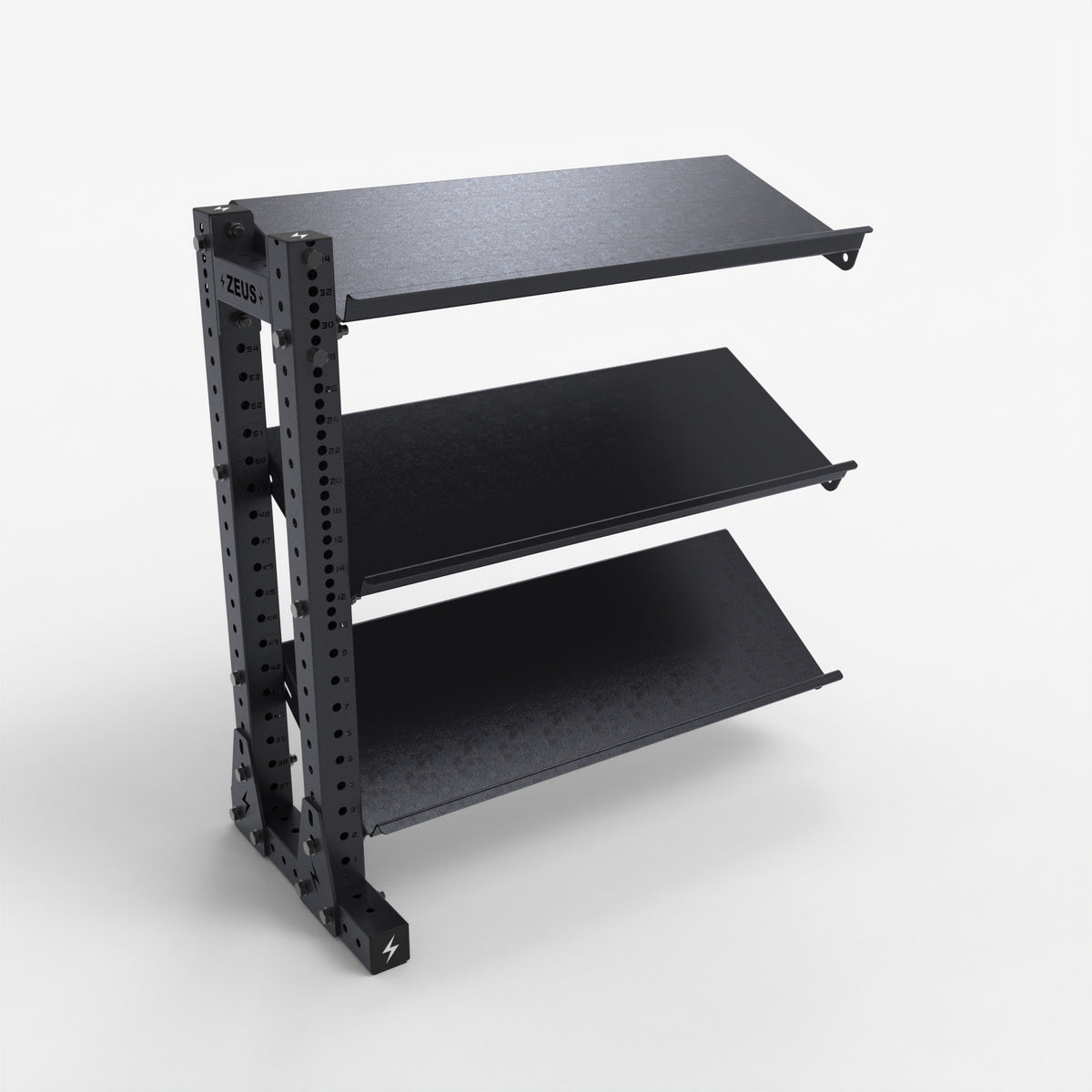

Gen 2 Storage Shelve, 3 Tier, XT1100, Add-On

Product Info

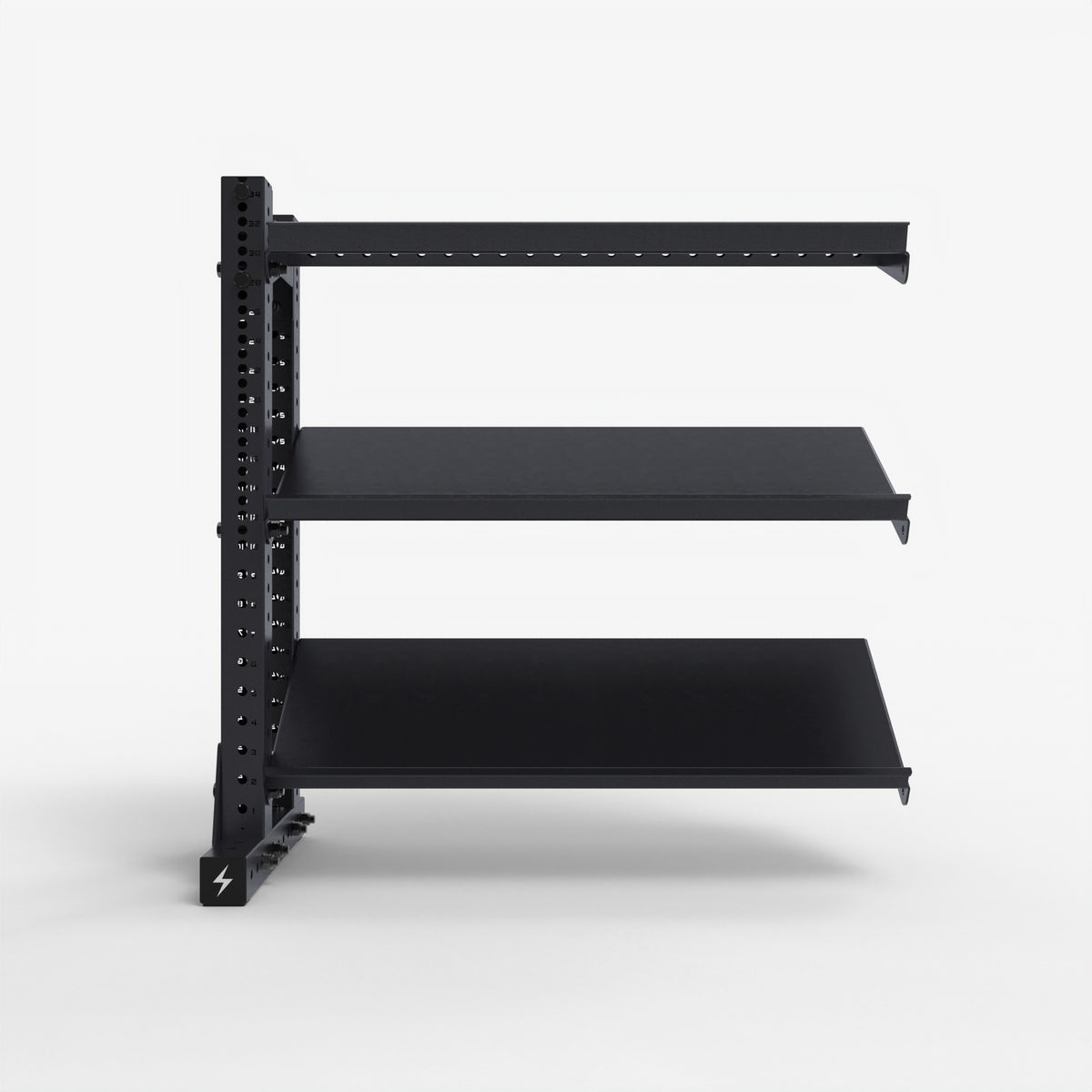

The Add-On Bay extends an existing Gen 2 Storage Shelve sideways by three more tiers. It carries one upright pair instead of two and bolts to the post already standing on your unit, so each extra bay costs less and takes less floor than a second free-standing rack.

Shelves are the same 7-gauge steel with an integrated structural gusset as the host unit, set to the same numbered hole pattern, so the tiers line up across the whole run rather than stepping at the join.

Each shelf sets flat or angled independently, the same as the host — flat for kettlebells, angled to present dumbbell handles outward. A run can mix the two freely along its length.

Bays can be added more than one at a time. Each further bay bolts to the previous one and adds another 46-1/2" (1181 mm) of width.

This is not a free-standing rack. It has no second upright and must attach to an existing Gen 2 Storage Shelve. Order the base unit first if you do not already have one.

Technical Specs

• Type: Add-on bay — attaches to an existing Gen 2 Storage Shelve
• Requires: A Gen 2 Storage Shelve host unit; not free standing
• Shelves: 3 x XT1100
• Shelf Angle: Flat or angled, each shelf set independently
• Shelf Material: 7-gauge steel with integrated structural gusset
• Shelf Width: 43-5/16" (1100 mm)
• Shelf Weight: 51 lb (23 kg) each
• Width: 47.0" (1193 mm)
• Depth: 23.2" (590 mm)
• Height: 47.6" (1210 mm)
• Width Added To The Run: 46-1/2" (1181 mm) per bay
• Combined Width, Base + One Bay: 97.2" (2468 mm)
• Uprights: One pair; shares the host unit's existing post
• Mounting Holes: Ø5/8" (Ø16 mm)
• Finish: Powder coat, black
• Use Rating: Full commercial
• Part Number: 3830022.004
