Offset Bumper Plate Storage Peg, Pair

Product Info

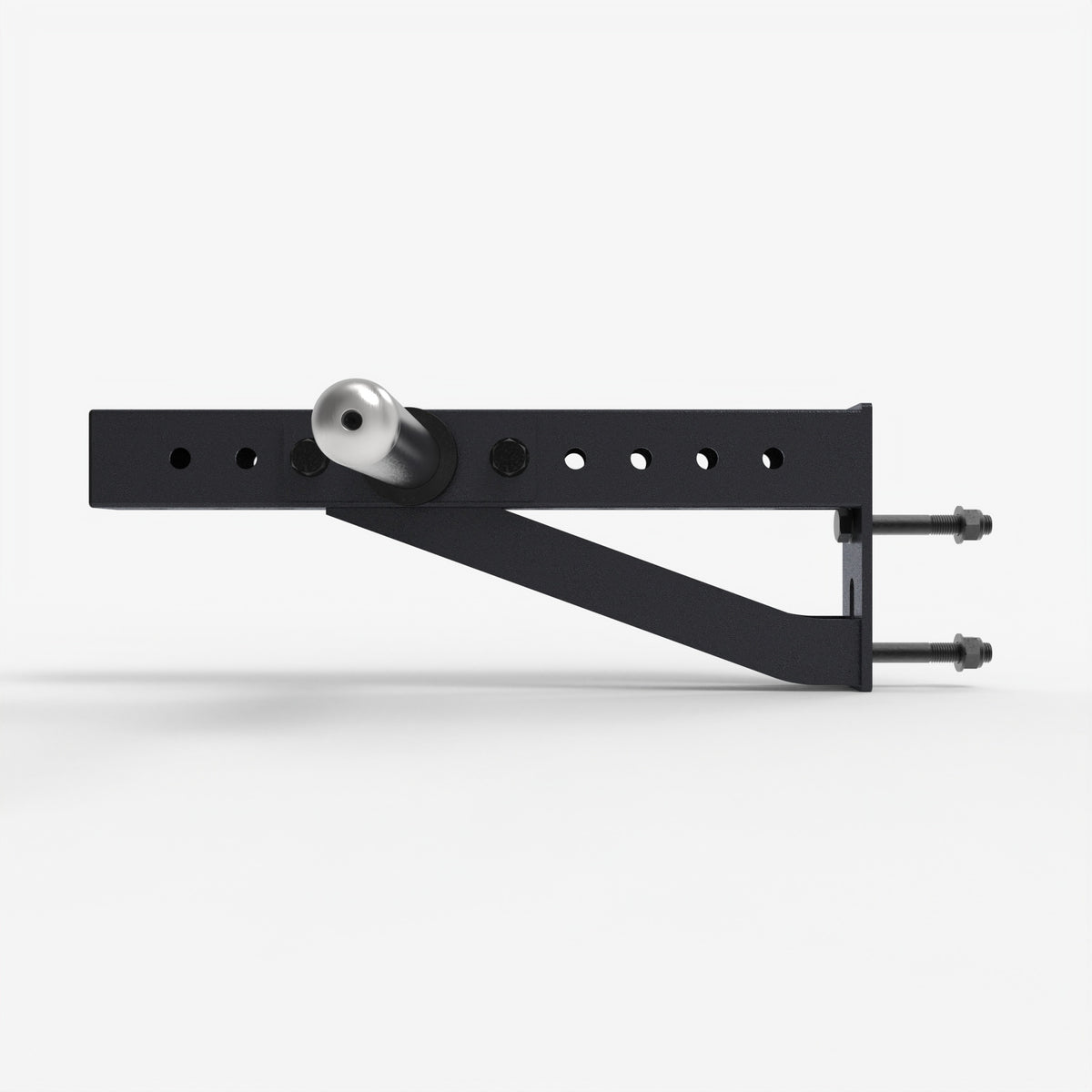

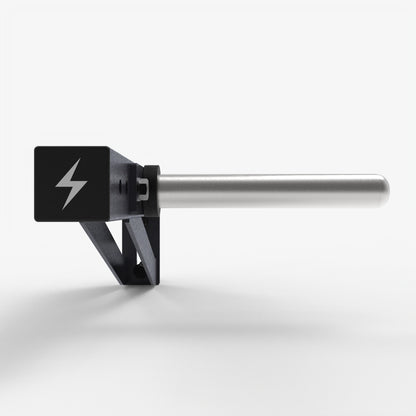

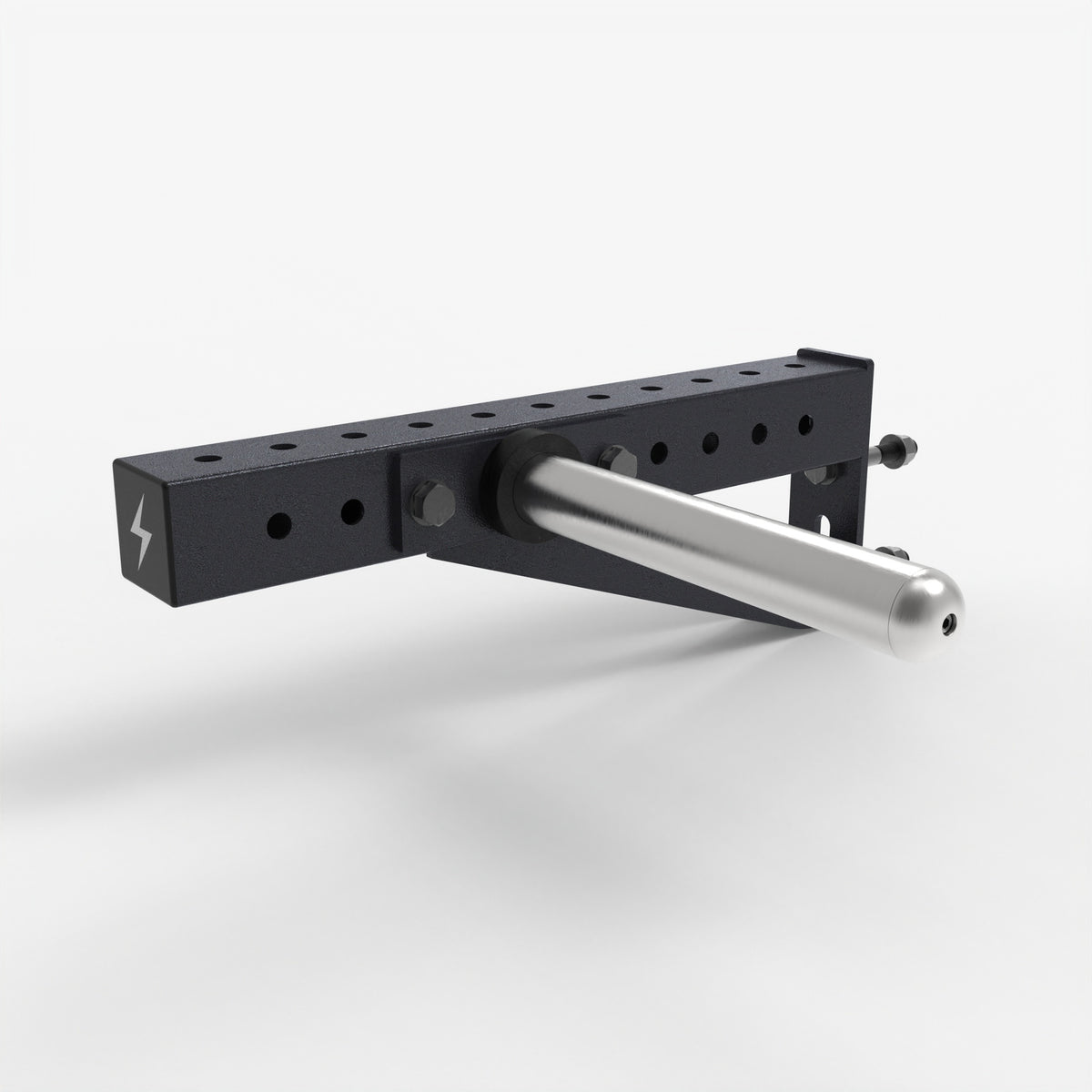

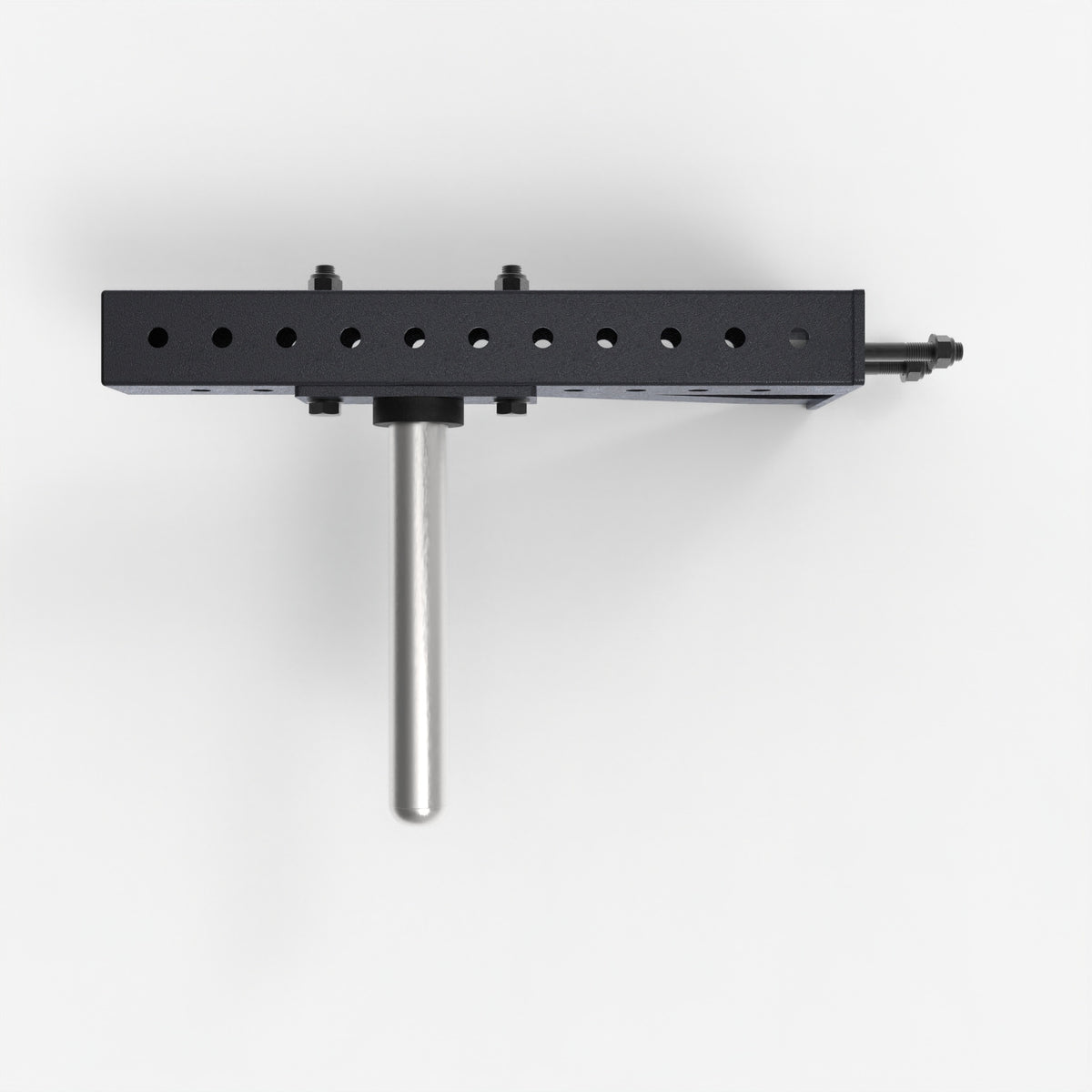

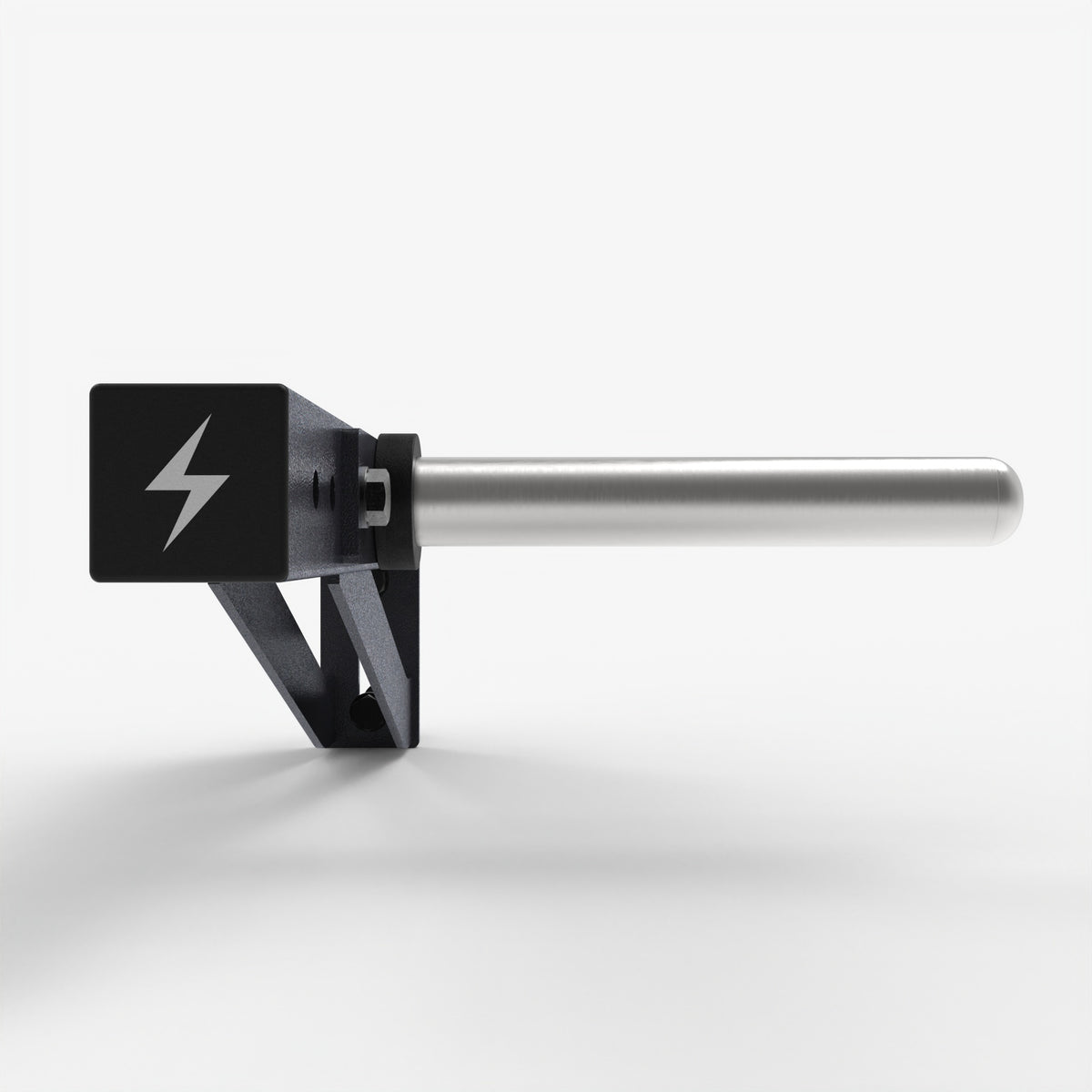

Two Offset Bumper Plate Storage Pegs - enough to fit one end of a rack or storage shelve. Each peg carries the plates forward of the upright on its own arm, so a loaded stack hangs clear and the unit can stand against the wall.

On a peg bolted straight to the post it is the diameter of the plate, not the length of the peg, that sets the gap: a 17-3/4" (450 mm) bumper reaches almost 9" past the upright in every direction, and that is the distance the rack has to stand off the wall. Moving the peg forward moves the whole circle with it, which is where the floor space comes back in a garage, a basement, or a studio built around its perimeter.

The peg bolts through a row of positions along the arm, so how far forward the plates sit is chosen at install and can be changed later - far enough out to clear the wall, no further than the room allows.

Stainless steel pegs, powder-coated steel arms and mounting plates, bolt-through hardware included.

Bumper plates are not included.

Technical Specs

• Contents: 2 x Offset Bumper Plate Storage Peg
• Type: Offset storage peg, rack mounted
• Mounting: Bolt-through the upright, two bolts per peg; hardware included
• Peg Position: Adjustable along the arm
• Width Added: 23.4" (595 mm) per fitted end
• Peg Material: Stainless steel
• Arm & Mount Material: Steel
• Finish: Powder coat black arm, brushed stainless peg
• Plates: Not included
• Use Rating: Full commercial
• Part Number: 6830010.002
