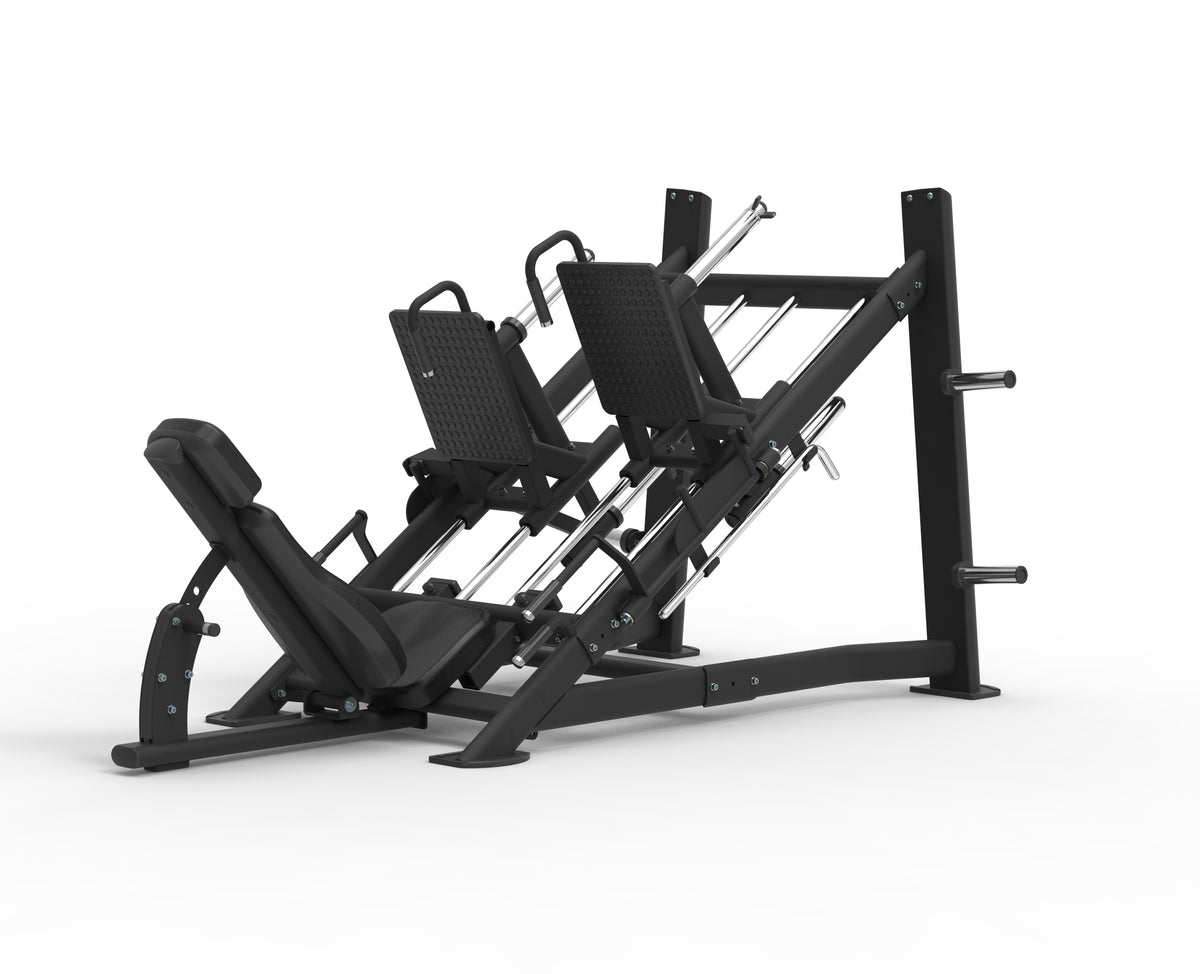

Unilateral Leg Press - AtlasX™ Series

Product Info

The Unilateral Leg Press - AtlasX™ Series is a plate-loaded leg press built for commercial gyms, performance centres and serious home setups. Independent platforms let it work as a conventional bilateral press or as a true single-leg machine, without changing stations or reconfiguring the frame.

Training each leg independently makes it well suited to correcting side-to-side imbalances, returning to load after injury, and building unilateral strength that carries into sport. Switching back to bilateral work takes no setup.

Four weight horns support loads of up to 2,500 lb, and the sled geometry delivers over 65% true resistance from the weight loaded — so the number on the horns reflects what the athlete is actually moving.

The carriage runs on linear ball bearings over chrome-plated guide rods, giving a consistent, low-friction stroke under heavy load. A pop-pin lumbar seat with three positions and multi-position spring-loaded safety stops let each user set depth and back support to suit their leverages and experience.

The oversized treaded footplate accommodates high, low, wide and narrow stances, shifting emphasis between quadriceps, hamstrings, glutes and calves. Four bolt-on stainless steel storage pegs keep Olympic plates on the machine and off the floor.

The frame is welded steel with an electrostatic powder-coated finish, built for continuous use in high-traffic facilities and backed by a lifetime warranty on the frame and structural welds.

Technical Specs

• Weight Capacity: Up to 2,500 lb
• True Resistance: Over 65% of loaded weight
• Machine Weight: 631 lb
• Footprint: 64" W x 96" L x 53" H
• Footplate: 14" W x 17" H, treaded surface
• Weight Horns: 4
• Training Modes: Bilateral and unilateral, independent platforms
• Carriage: Linear ball bearings on chrome-plated guide rods
• Seat Adjustment: Pop-pin lumbar seat, 3 positions
• Safety Stops: Multi-position, spring-loaded
• Plate Storage: 4 bolt-on stainless steel pegs
• Frame: Welded steel, electrostatic powder coat
• Upholstery: High-density foam, black vinyl (custom colours available)
• Use Rating: Full commercial
• Warranty: Lifetime on frame and structural welds; limited warranty on components

Shipping & Lead Time

This machine is built to order, so please allow lead time before shipping. It ships fully assembled by freight on an oversized skid and requires a loading dock or forklift to receive. If you do not have dock access, contact us before ordering and we will arrange an alternative.

Standard upholstery is black. Custom colours are available on request; custom colour orders are final sale.
