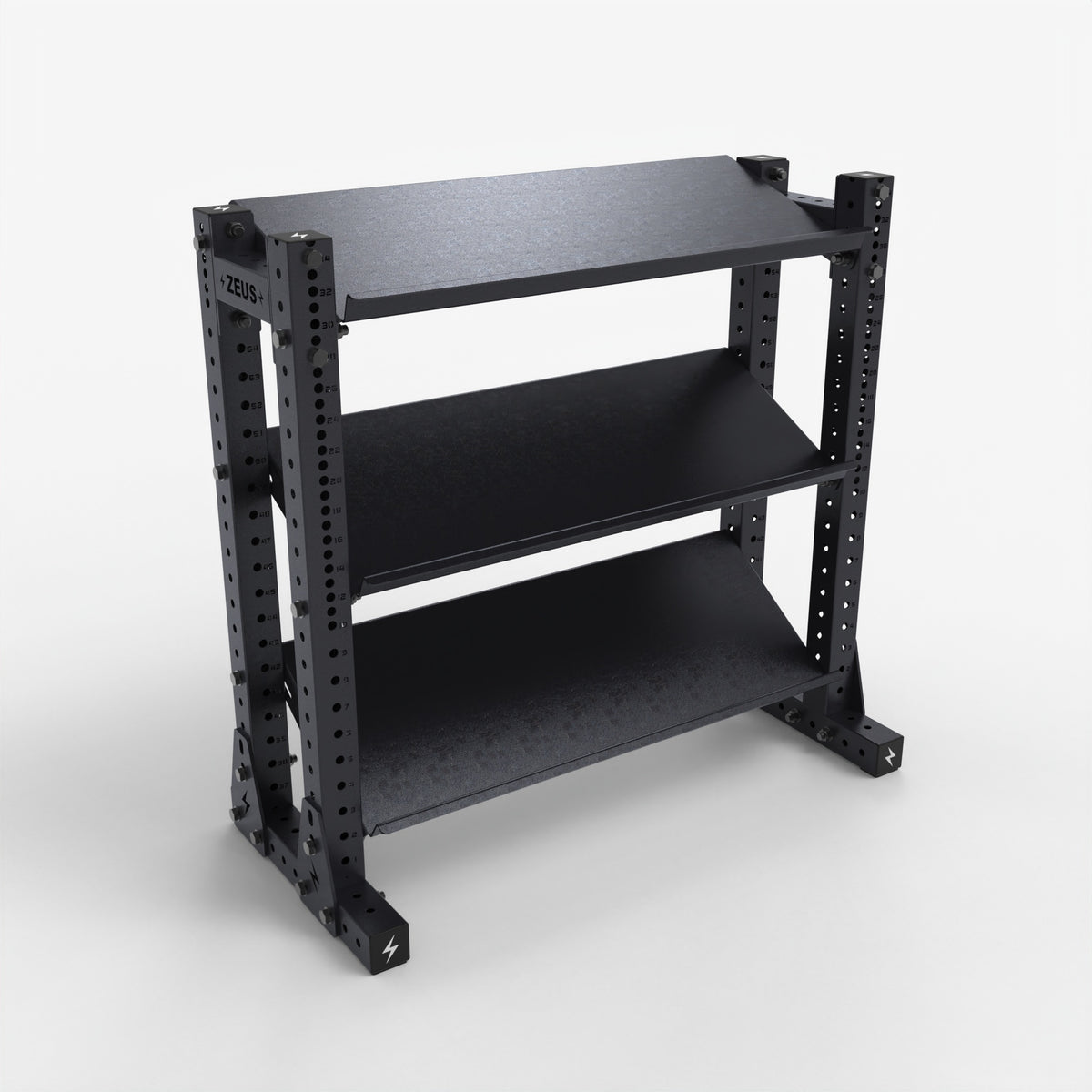

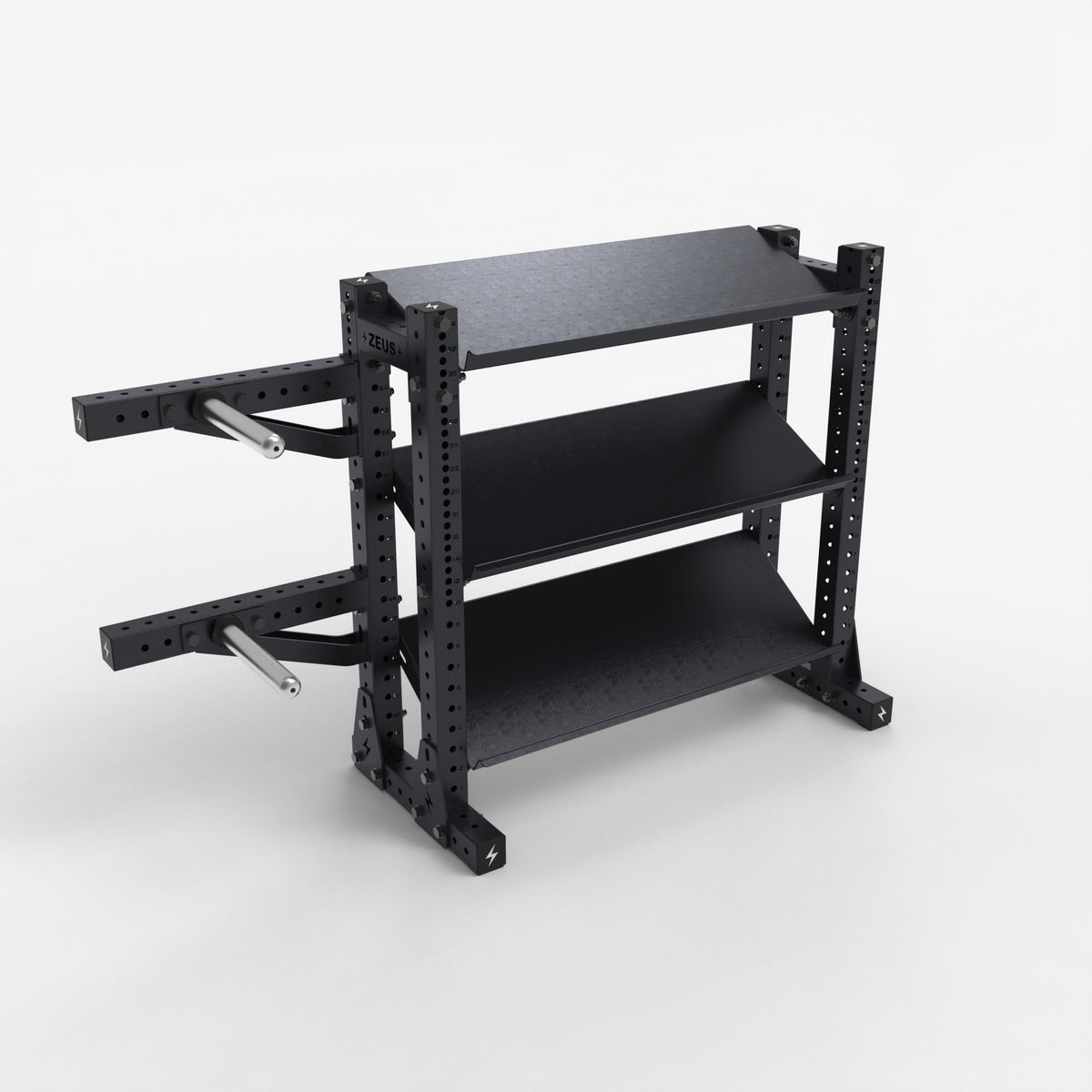

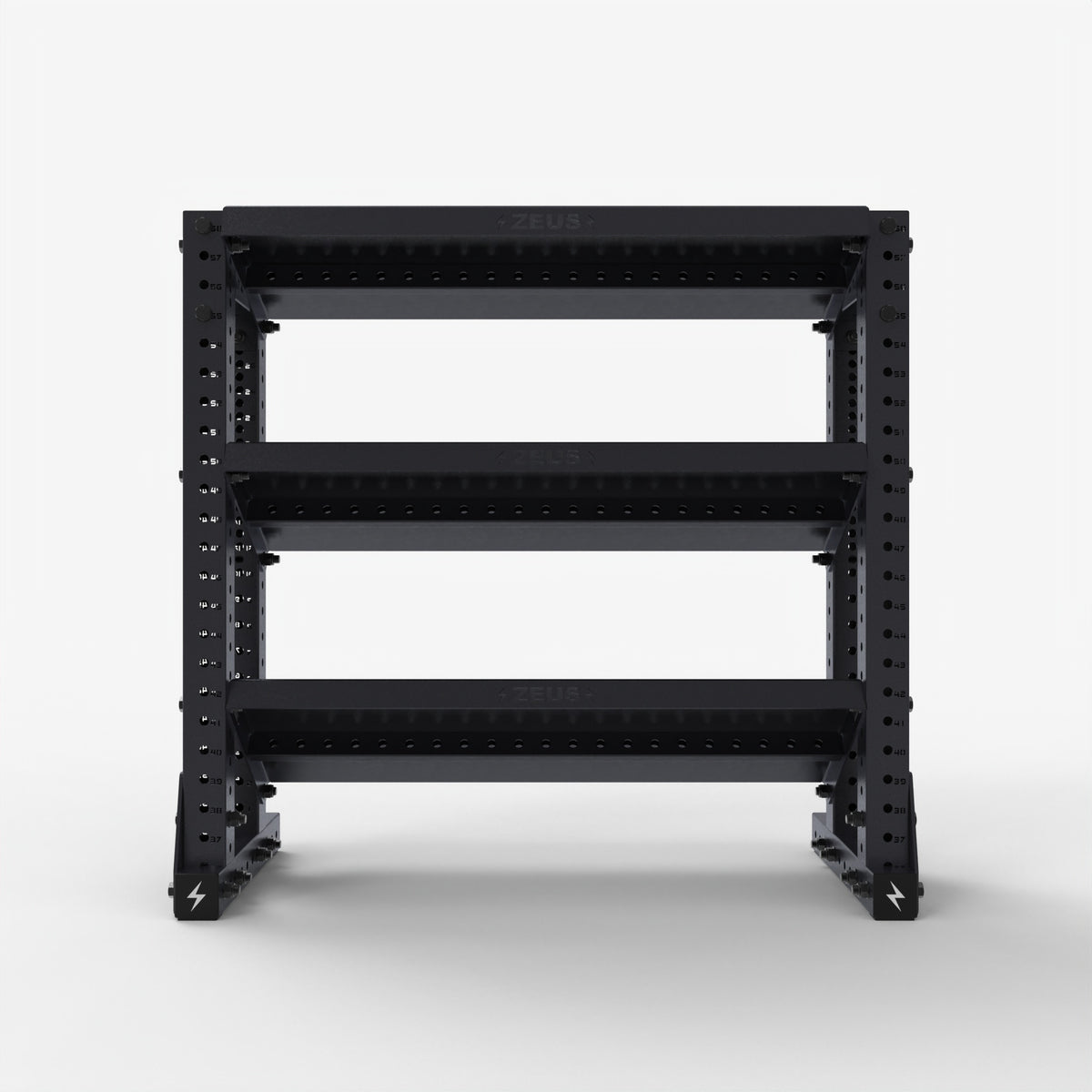

The Gen 2 Storage Shelve puts three full-width tiers against a wall, holding a working set of dumbbells, kettlebells or wall balls in a footprint that does not eat training floor.

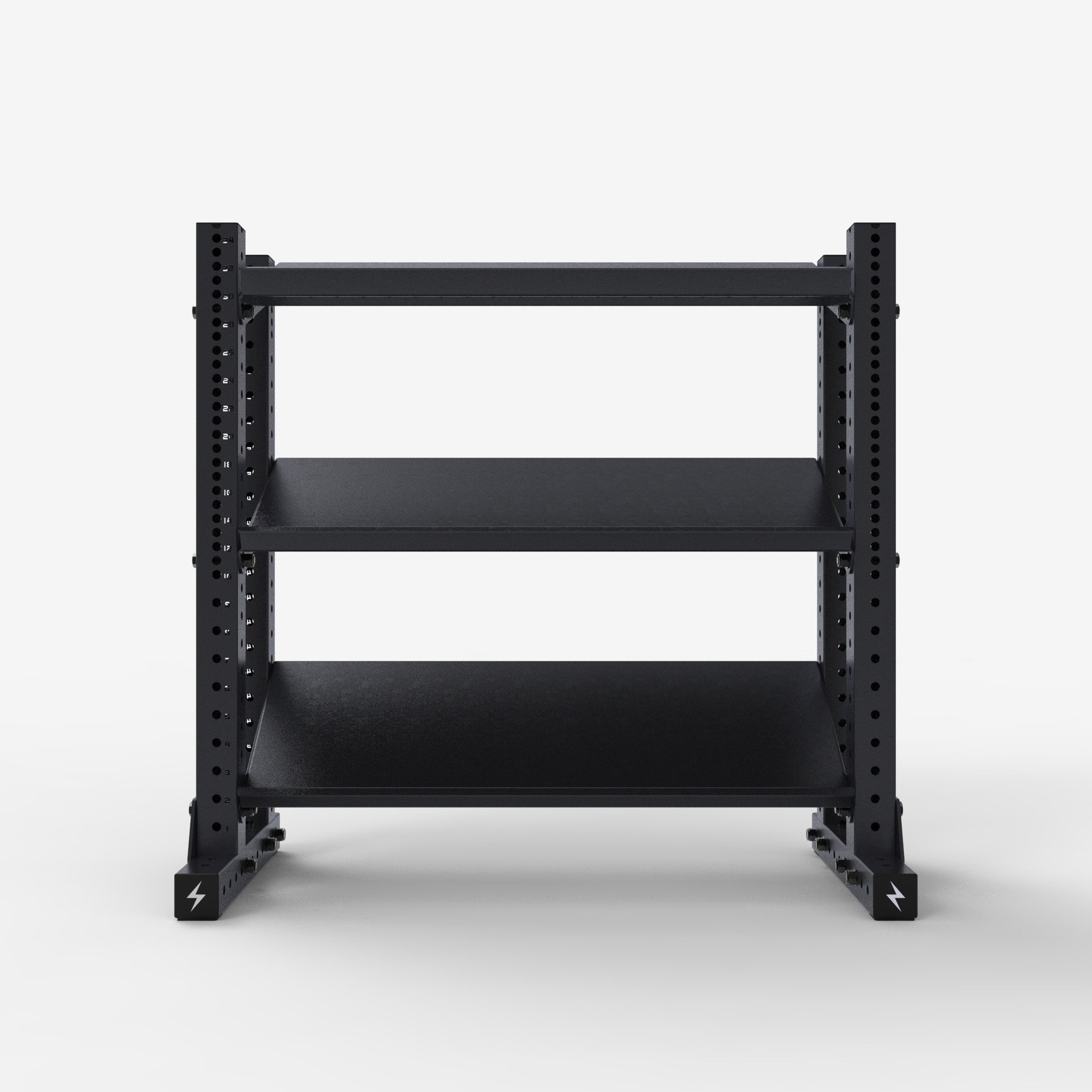

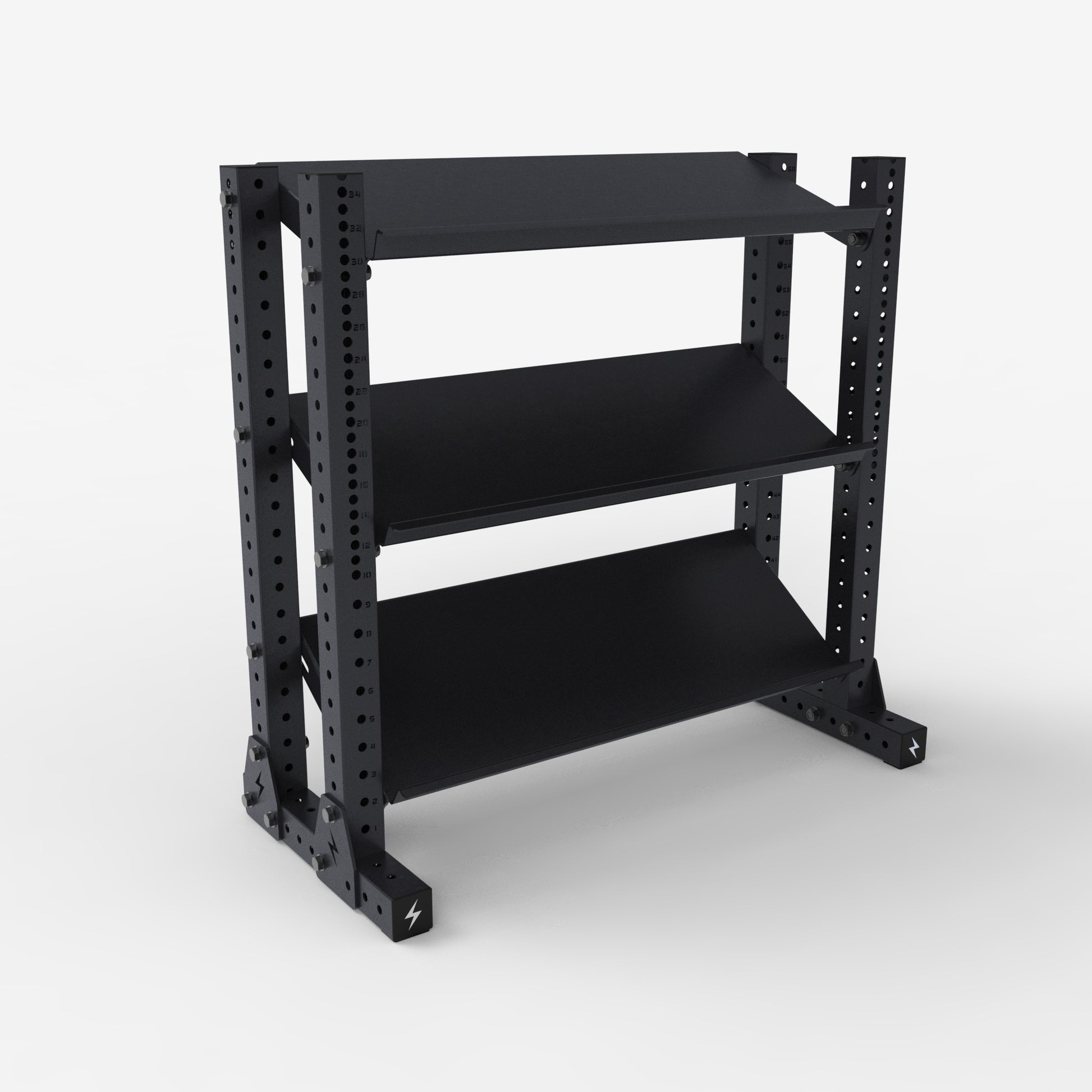

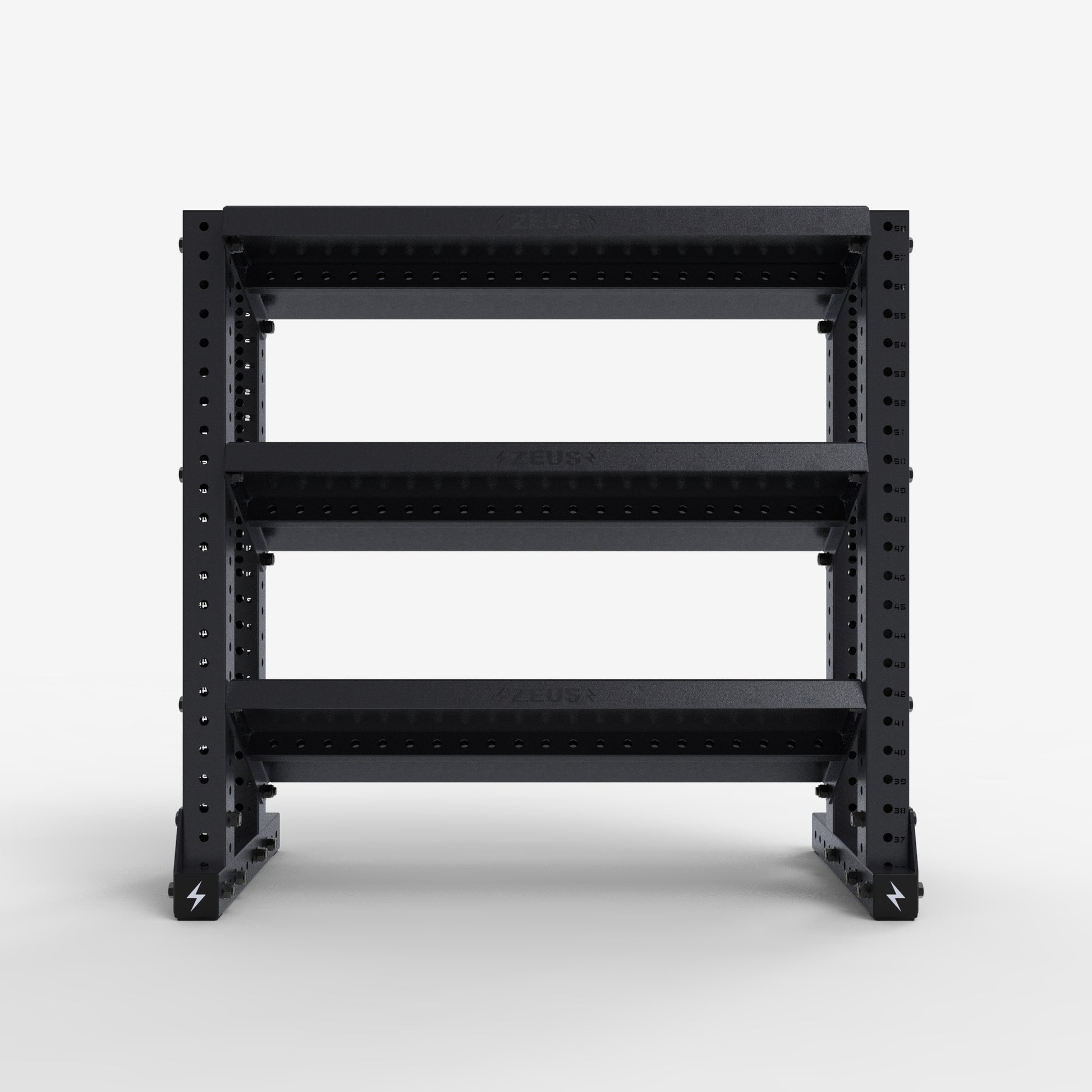

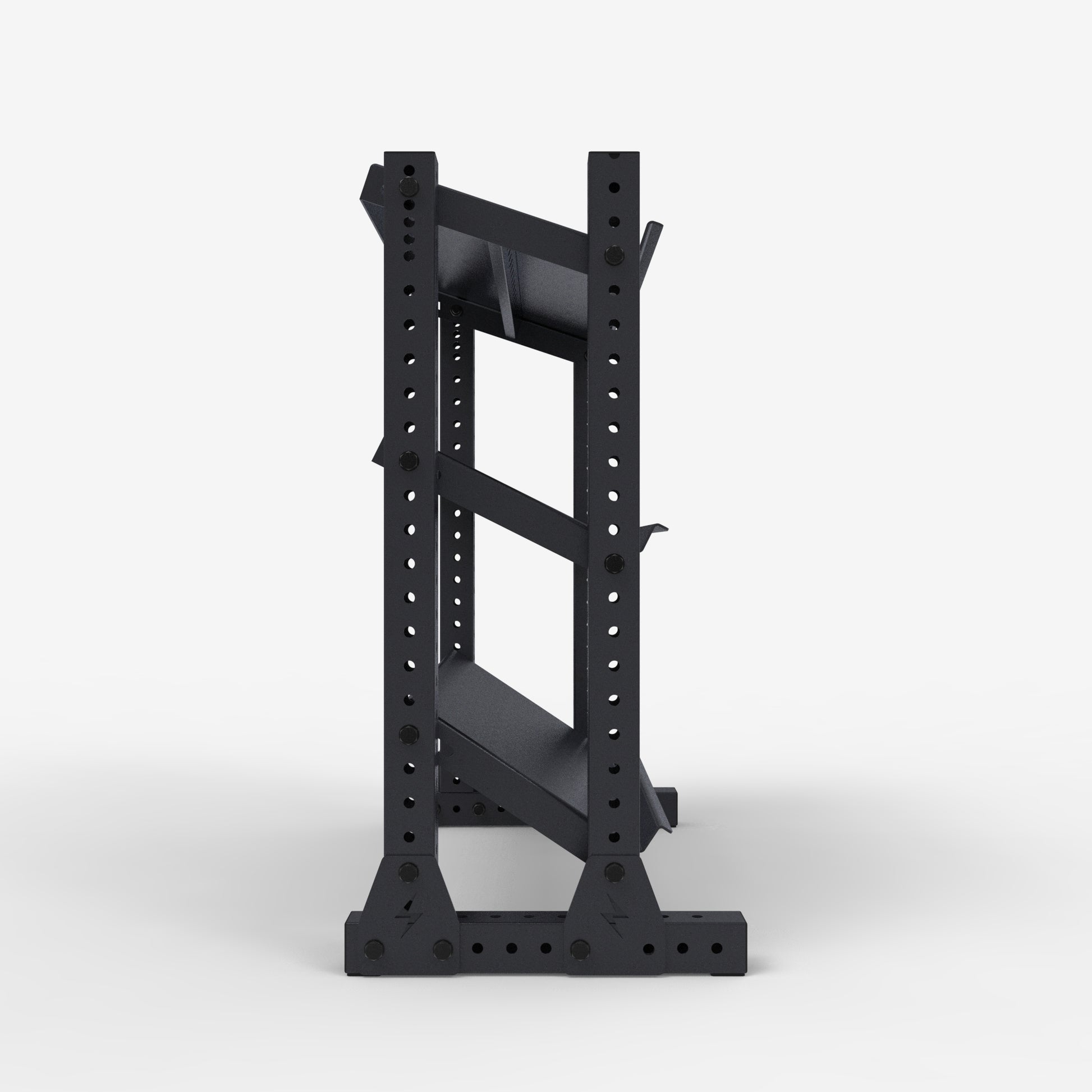

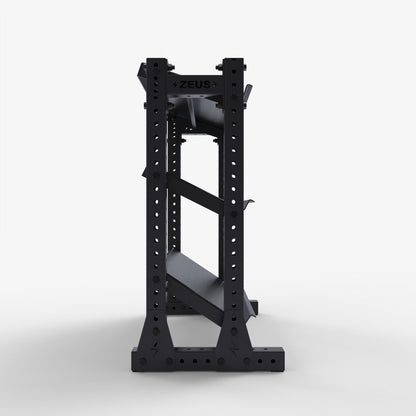

Each shelf sets flat or angled, independently of the others. Flat holds kettlebells square and stable; angled presents dumbbells so the handles face out and the weight can be read without crouching. One unit can run angled dumbbell tiers above a flat kettlebell tier, and be changed round later when the equipment mix does.
Shelves are 7-gauge steel with an integrated structural gusset underneath. That is the difference between a shelf that stays flat under a row of 50s and one that bows by the end of a season — the gusset carries the load the sheet alone would not.

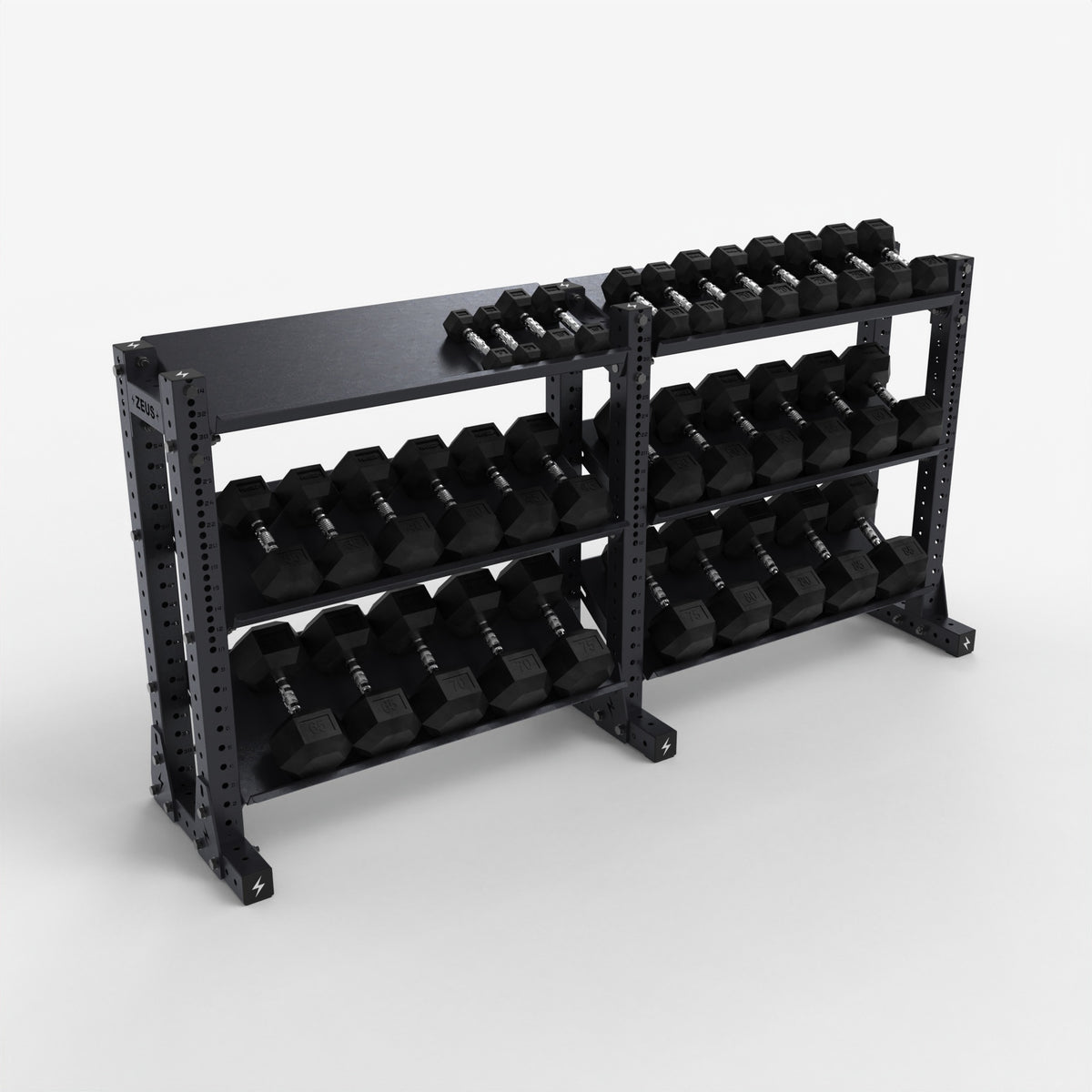

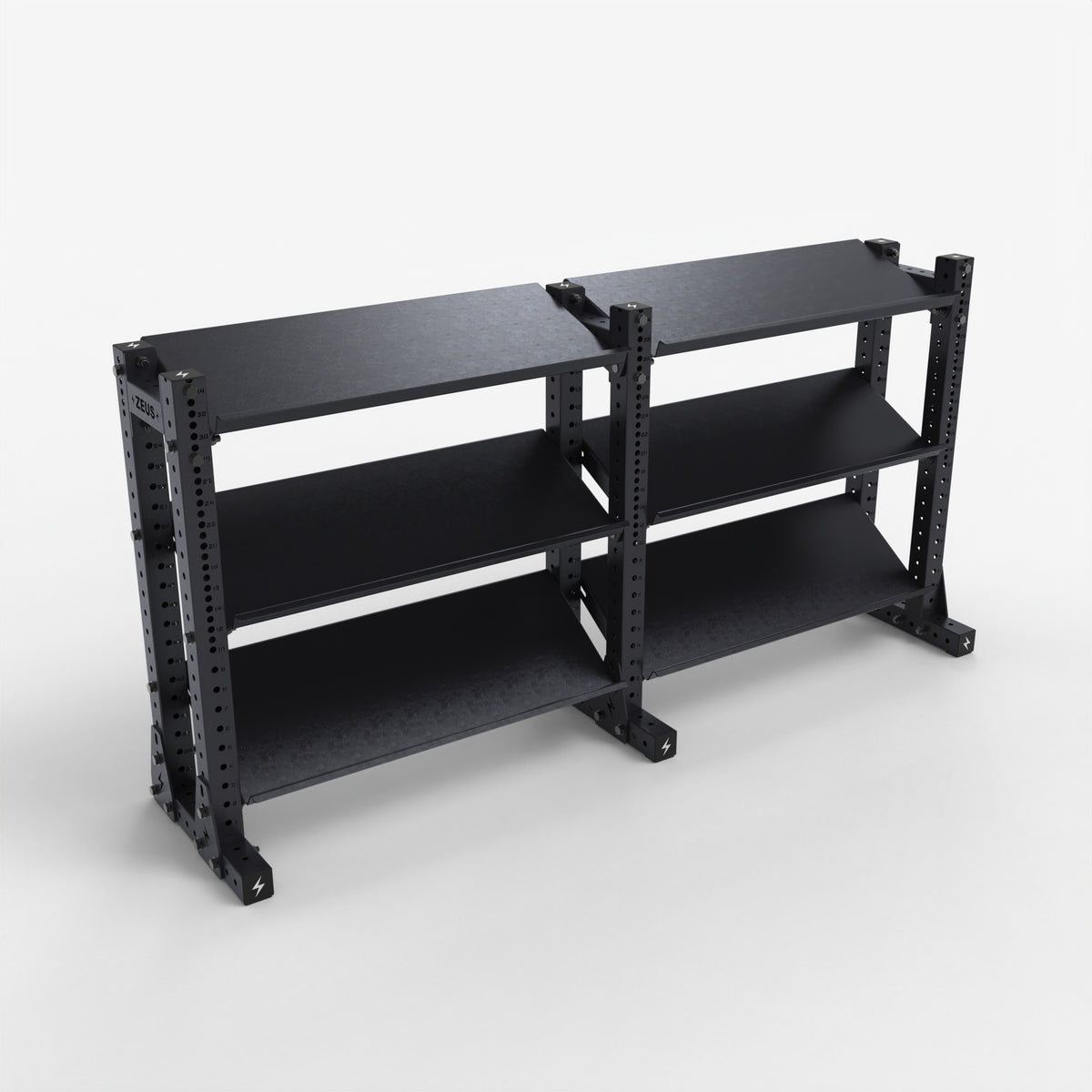

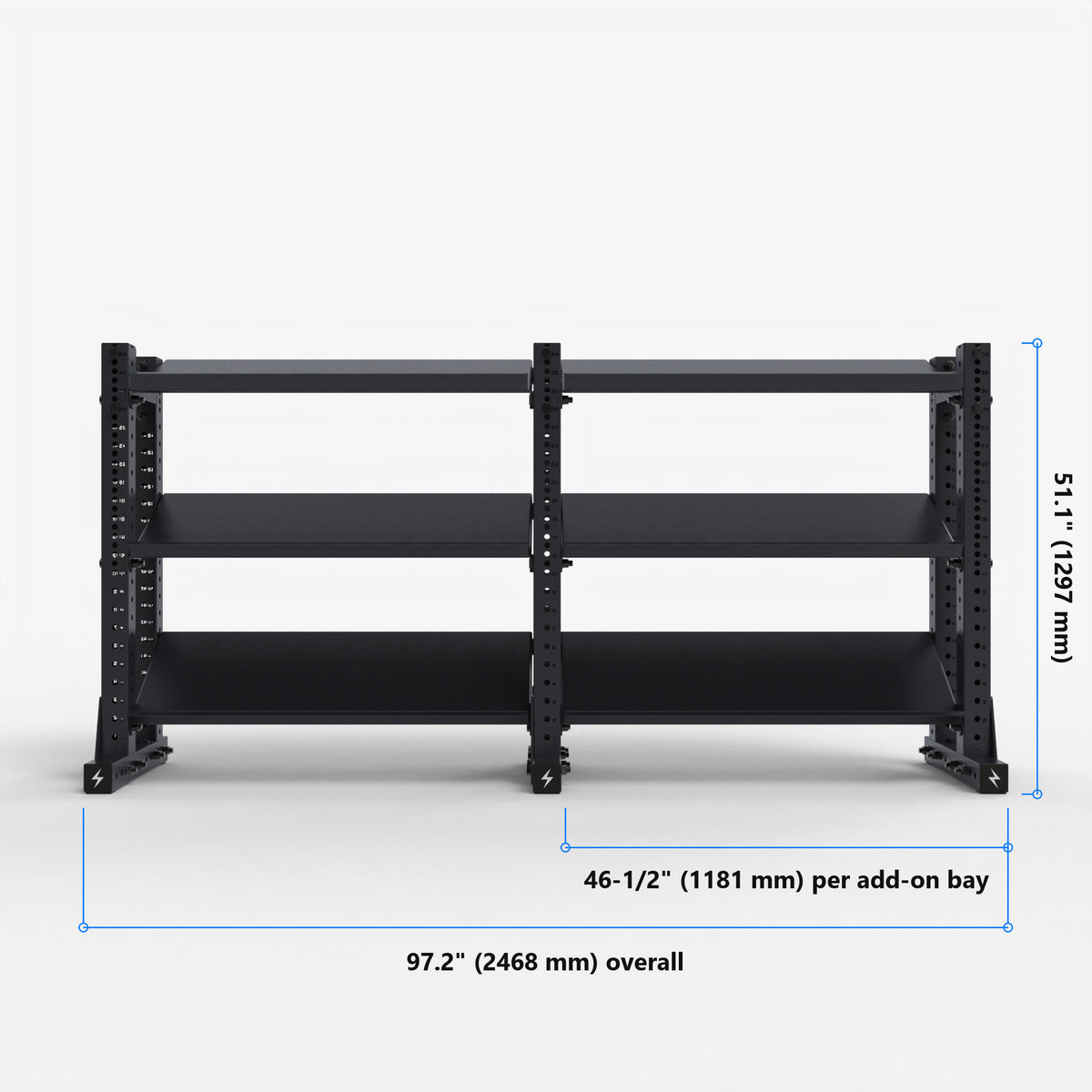

The uprights are numbered. Every hole is marked, so a shelf height is set to a number rather than by eye, levelled against the other side, and matched exactly on a second unit standing beside it.
At 23.2" (590 mm) deep it sits tight to a wall, and the feet are drilled for floor fixing where a facility wants it anchored.

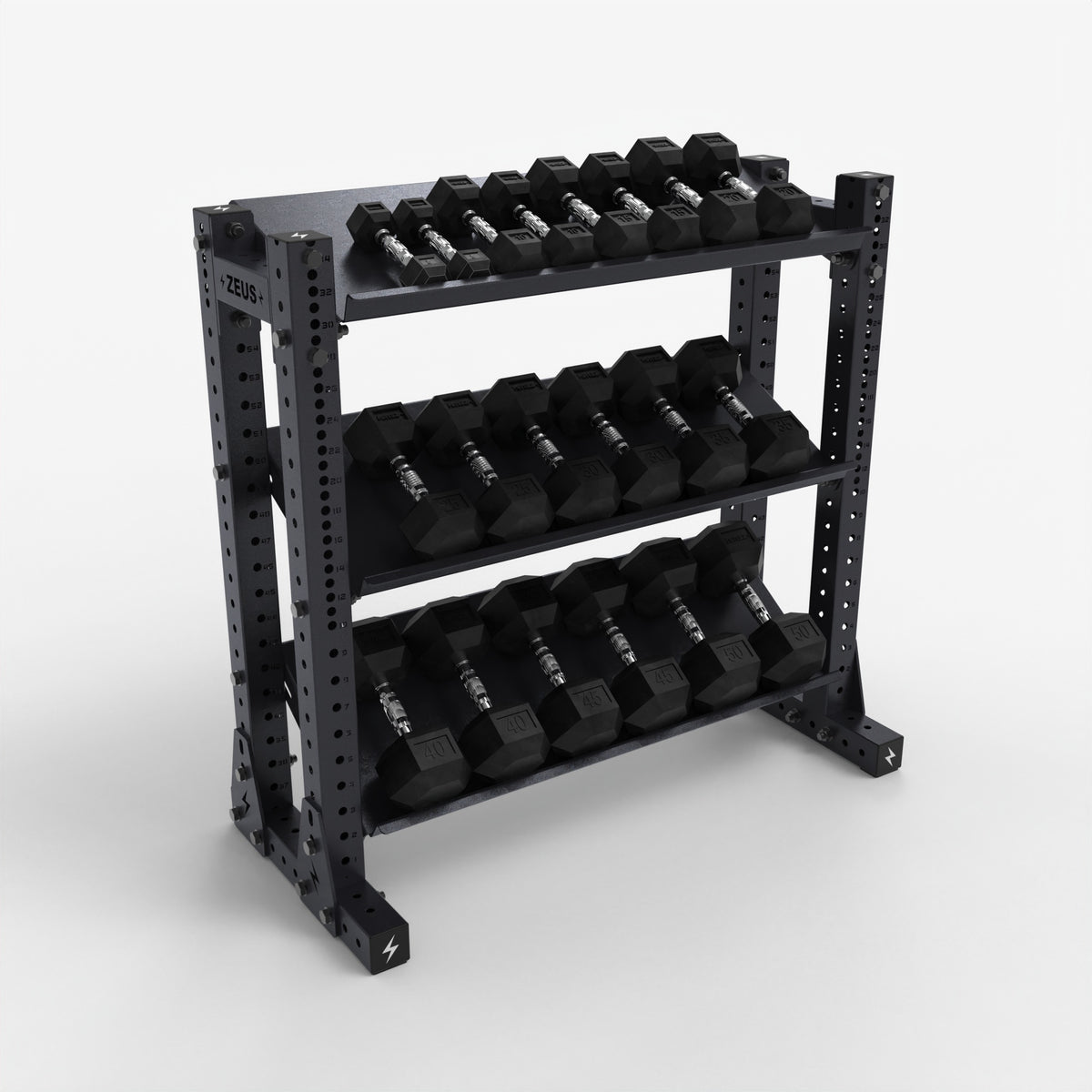

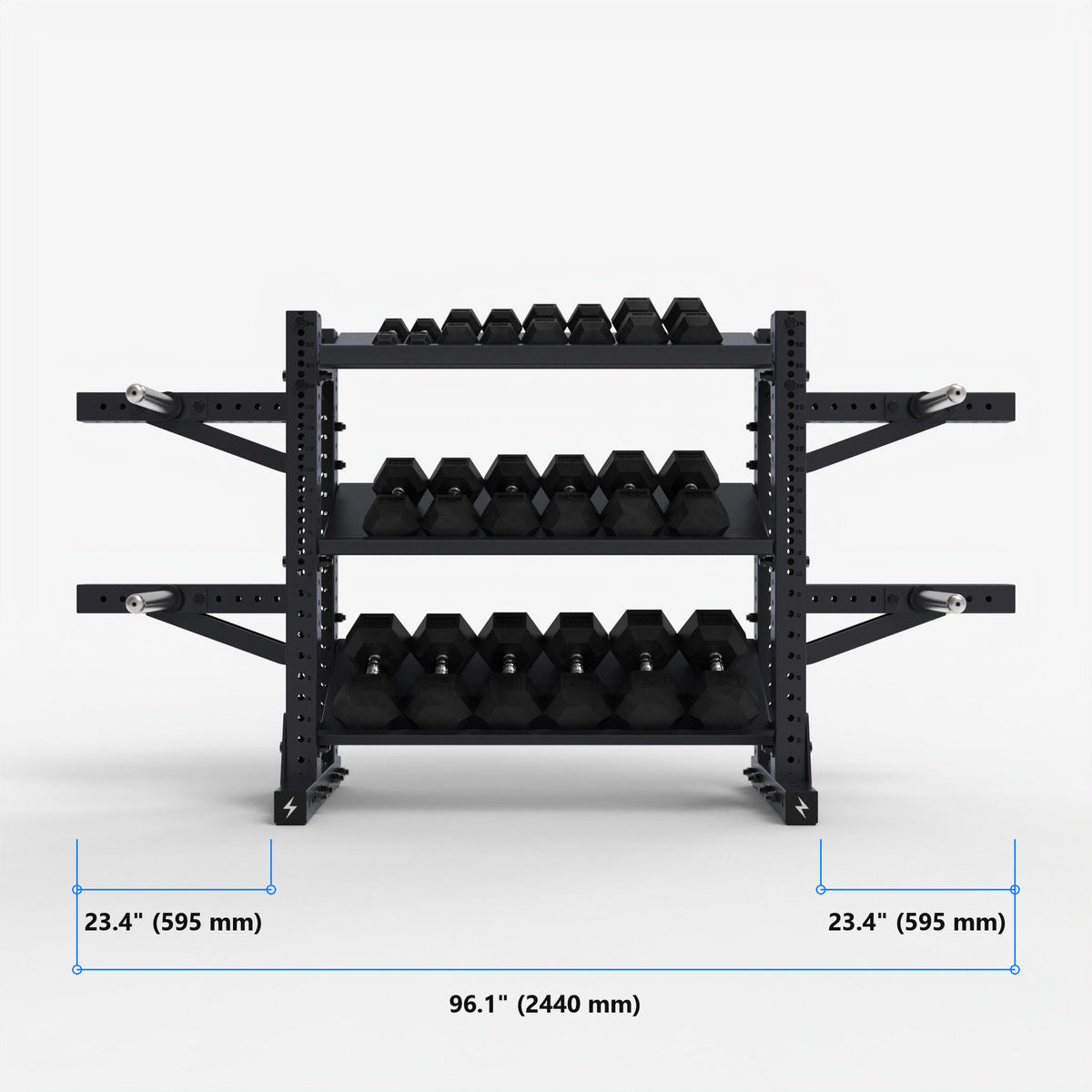

Dumbbells are not included. The tiers hold any dumbbell. Two complete hex sets are offered as options below, 5–50 lb and 5–85 lb, because each is sized to this rack and shown loaded on it — so how a full set sits across the three tiers is clear before ordering. Any other weights, odd pairs or singles can be added from the Hex Dumbbells range.
Technical Specs
Type: Three-tier free-standing storage shelf
Shelves: 3 x XT1100
Shelf Angle: Flat or angled, each shelf set independently
Shelf Material: 7-gauge steel with integrated structural gusset
Shelf Width: 43-5/16" (1100 mm)
Shelf Weight: 51 lb (23 kg) each

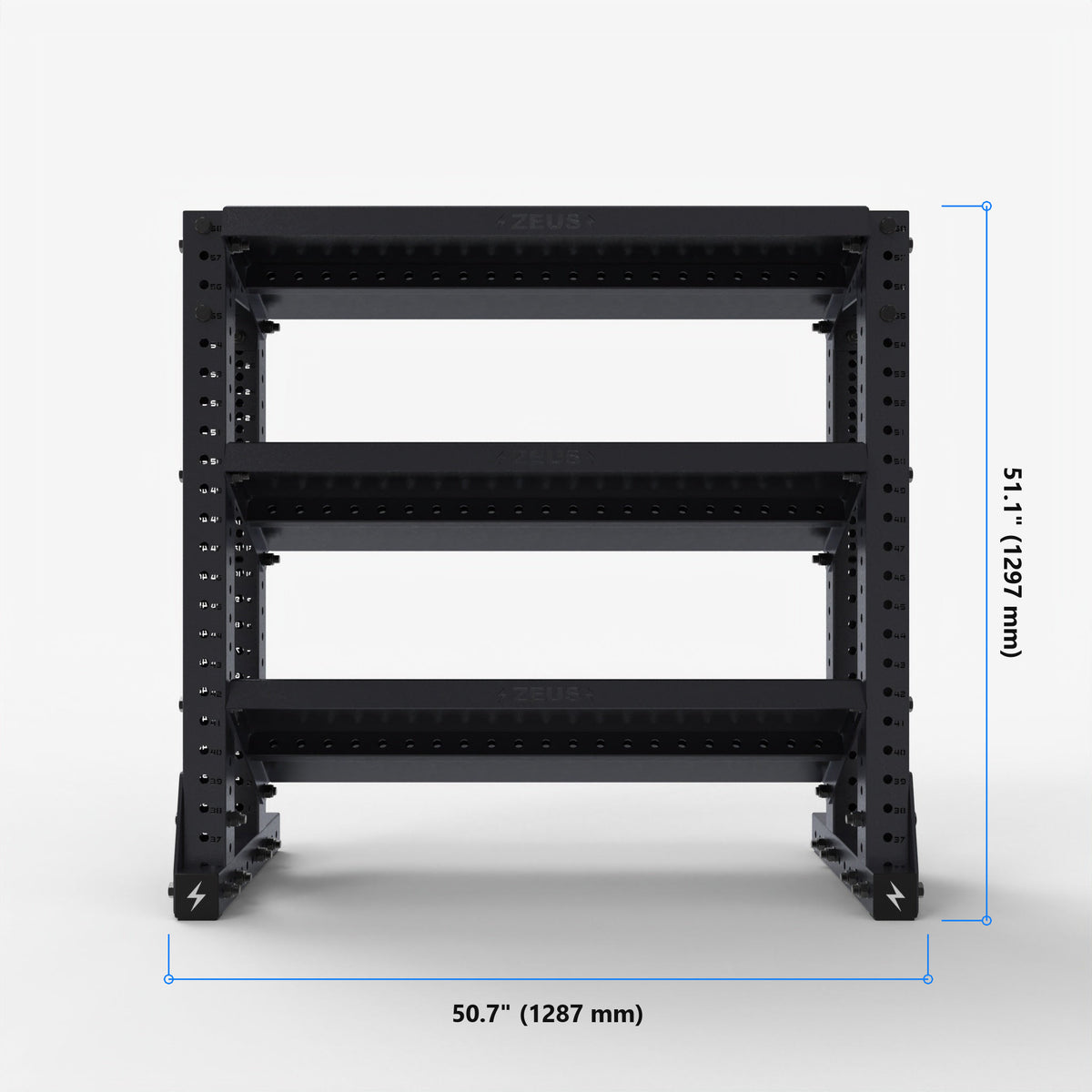

Width: 50.7" (1287 mm)
Depth: 23.2" (590 mm)
Height: 51.1" (1297 mm)
Assembled Weight: 269 lb (122 kg)
Mounting Holes: Ø5/8" (Ø16 mm)
Height Adjustment: Numbered uprights; each shelf sets independently on the hole pattern
Finish: Powder coat, black
Installation: Free standing; feet drilled for optional floor fixing
